Comenster Machinery specializes production of water filling production line manufacturers. The series of water filling production line can fill PET bottles of various capacities, including 200-1500ml small bottle water, 5-10L large bottled water, and 5 gallon water. This water filling production line is mainly used for processing mineral water, pure water, drinking water, mountain spring water, etc. Water filling equipment can be combined with blow molding machine, labeling machine, sleeve labeling machine, film packaging machine, carton box packing machine, palletizer, etc. to form a complete water production line.
Water filling machine apply to the production of pure water and mineral water, with optional capacity from 6000BPH to 48000BPH.
Water Bottle Filling Machine Products Main Technical Parameter
Model | XGF16/16/5 | XGF24/24/8 | XGF32/32/8 | XGF40/40/10 |
Rinsing head | 16 | 24 | 32 | 40 |
Filling head | 16 | 24 | 32 | 40 |
Capping head | 5 | 8 | 8 | 10 |
Capacity(BPH) | 4000-6000 | 10000-12000 | 15000-18000 | 18000-20000 |
Model | XGF50/50/15 | XGF60/60/15 | XGF72/72/18 | XGF80/80/22 |
Rinsing head | 50 | 60 | 72 | 80 |
Filling head | 50 | 60 | 72 | 80 |
Capping head | 15 | 15 | 18 | 22 |
Capacity(BPH) | 22000-24000 | 28000-30000 | 34000-36000 | 40000-42000 |

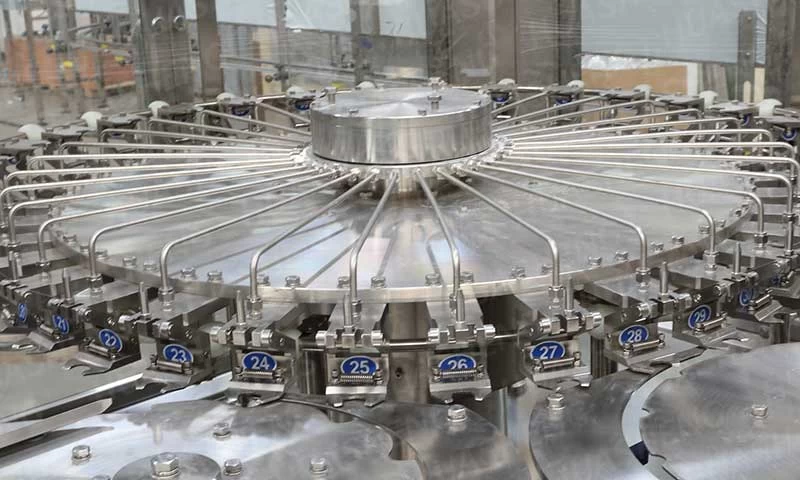

1.Into bottle way is air conveyor direct connection with Bottle dial.
2.All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
3.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
4.304/316 stainless steel washing pump make the machine more durable.
1.304/316 Stainless steel high precision filling nozzle.
2.Filling volume adjustable in fine rank, same liquid level after filling.
3.All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
4.304/316 stainless steel filling pump.
5.Efficient spray nozzle rinse thoroughly and save water for flushing.
1.Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
2. All 304/316 stainless steel construction.
3. No bottle no capping.
4. Automatic stop when lack of bottle.
5.Capping effect is stable and reliable ,Defective rate ≤0.2%.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod.
Fully automatic drink water filling machine adopts neck handling technology for the filling process of pure water and spring water to achieve automatically bottle washing,filling and capping.The following is detailed working process.
Firstly,the bottles are transported by conveyor line,then transferred by a toggle star wheel to the 3-in-1 bottle washing machine.
Secondly,bottle clamps on the washing machine grip the bottle neck and rotate 180° along a rail to make the bottle down.
Third,at a certain area of the washing machine,the bottle washing clamps nozzle sprays water to punching the inside of the bottle.
Fourthly,after washing and draining,the bottles rotate 180° along the rail under the bottle clamps to make the bottle up.
The washed bottles are exported from the bottle washing machine via the star wheel and transferred to the drinking water filling machine.
The bottle entering the water filling machine is caught by the bottle neck pallet and raises by the cam,the filling valve is then opened by the mouth of the bottle and the filling process is done by gravity. After opening the filling valves,the water is filled via filling valves to finish the filling process.
Then the bottle drops and leaves the filling valves.The bottle enters the capping machine through handling bottlenecks.The stopper knife on the capping machine catches the neck of the bottle, keeping it upright and preventing it from rotating.
The capping head keeps revolving and rotating on the capping machine.Under the action of the cam,realizes the grabbing, capping, screwing, and unscrewing to complete the whole sealing process.
The finished bottles are transported from the capping machine to the conveyor line via bottle-out dial wheel and then transferred out of the pure water 3-in-1 bottle filling machine.
